It looks like you've uploaded an image of a microscope with labeled lines pointing to various parts, but the actual labels are missing. Since I can't view images directly, I'll help you identify and label the main parts of a compound light microscope based on standard anatomy.

Here’s a breakdown of the typical parts of a microscope and their functions:

1. Eyepiece (Ocular Lens) – The lens at the top that you look through. It usually magnifies 10x.

2. Body Tube – The tube that connects the eyepiece to the objective lenses. It holds the optical path.

3. Objective Lenses – These are the lenses near the specimen that provide varying levels of magnification (e.g., 4x, 10x, 40x, 100x). They are mounted on a rotating nosepiece.

4. Nosepiece (Revolver) – The rotating part that holds the objective lenses.

5. Stage – The platform where the slide is placed for viewing. It often has clips to hold the slide in place.

6. Stage Clips – Small metal clips on the stage that secure the slide.

7. Diaphragm (Iris Diaphragm) – Located beneath the stage; it controls the amount of light passing through the specimen.

8. Condenser – Focuses light onto the specimen. Often adjustable to optimize illumination.

9. Coarse Adjustment Knob – Large knob used to raise or lower the stage quickly for initial focusing.

10. Fine Adjustment Knob – Smaller knob used for precise focusing after coarse adjustment.

11. Base – The bottom part of the microscope that supports the entire structure and houses the light source.

12. Light Source (Illuminator) – Located at the base; provides light to illuminate the specimen.

13. Arm – The curved part connecting the base to the head; used to carry the microscope.

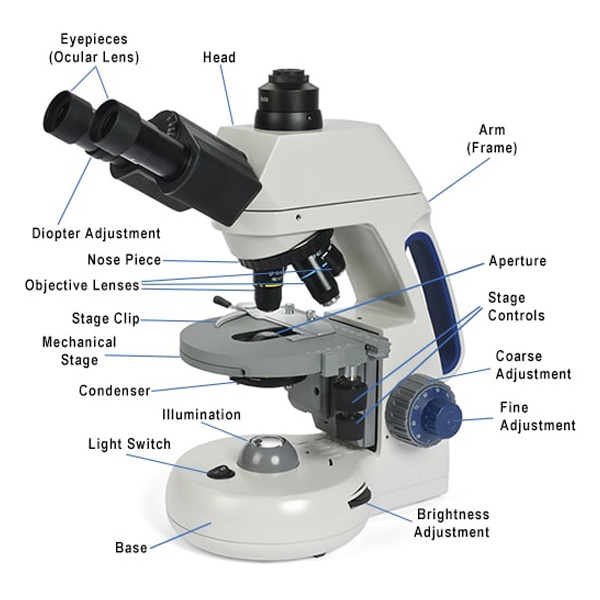

Now, if your diagram has numbered lines pointing to these parts, you can match them accordingly. For example:
- Top black cylindrical part → Eyepiece
- Below eyepiece, vertical tube → Body Tube
- Lenses near the stage → Objective Lenses
- Rotating turret holding lenses → Nosepiece
- Platform with clips → Stage
- Adjustable ring under stage → Diaphragm
- Black knobs on side → Coarse and Fine Adjustment Knobs
- Bottom flat part → Base

If you can describe which parts are labeled or point out specific areas, I can help you label them more precisely.
